Badminton strings are designed to withstand enormous tension, but where is the real breaking point?
In this experiment, a range of different badminton strings were tested using a tensile test machine to measure the exact point at which each one snapped. The goal wasn’t to replicate real stringing conditions on a racket, as these tensions are far beyond what most players would ever use. But it's to have some fun and better understand the relative strength and breaking limits of different string types!
How The Experiment Works
So, how this will work is that I take a small piece of string and wrap each end with some sandpaper to help with the grip and ensure the string stays in the clamp. Then, I’ll clamp the string into the tensile test machine and make sure it holds the ends of the string tightly.
When I turn the machine on, it will slowly pull and stretch the string to create more and more tension, while measuring the distance it has been stretched. It’s also hooked up to a screen, which shows the exact point at which the string breaks.
The Rules Of The Test
As with every experiment, we need some rules! Here they are:
Each piece of string must be fresh and unused.
The centre area between the two clamps must be at least 10 cm for every test.
The sandpaper is replaced after every two runs.
Each string has a pre-tension of 5 newtons (about half a kilogram).
The machine pulls at 2 cm per second until the string breaks, while measuring the distance.
Obviously, this isn’t a perfect experiment. There may be variables I couldn’t control, especially when the clamps slipped on certain strings. But we’re here to learn a little bit and have some fun!
Remember to protect your precious badminton rackets from chips and scratches with the Premium Racket Protection Tape with free delivery worldwide on ckyew.com/shop. We also have some super limited edition player signed prints too!
Results: Breaking Tensions Ranked
Ranking | String Name | Tension Reached Before Breaking | How To Get The String |
16 | Yonex Aerosonic (Grey) - a thin string at only 0.61 mm | 37.9 lbs | |
15 | Yonex BG66 | 44.1 lbs | |
14 | Yonex Exbolt 63 | 53.16 lbs | |
13 | Yonex BG68 Titanium - an old-school string that some players still swear by | 44.8 lbs | |
12 | Yonex SkyArc | 47.5 lbs | |
11 | Yonex Aerobite | 48.5 lbs | |
10 | Yonex Aerobite Boost | 56.0 lbs | |
9 | Yonex BG66 Ultimax | 51.5 lbs | |
8 | Yonex BG66 Force | 51.7 lbs | |
7 | Yonex Aerosonic (White) | 51.8 lbs - incredible score considering it’s only 0.61 mm thick! | |
6 | Yonex BG65 Titanium | 51.94 lbs | |
5 | Yonex BG80 | 53.3 lbs | |
4 | Yonex Nanogy 98 (White) | 53.9 lbs - this string is often considered fragile, but it held up very well here | |
3 | Yonex BG65 | 56.0 lbs - a classic string, showcasing its durability | |
1 | Babolat Life+ 70 | 57.3 lbs | |
1 | Yonex Nanogy 95 | 57.3 lbs |
Could you imagine playing with a racket with strings of 57+ lbs of tension? Now that would be crazy! It was also really surprising that we had a joint first place with the Babolat Life +70 and the Yonex Nanogy 95 string!

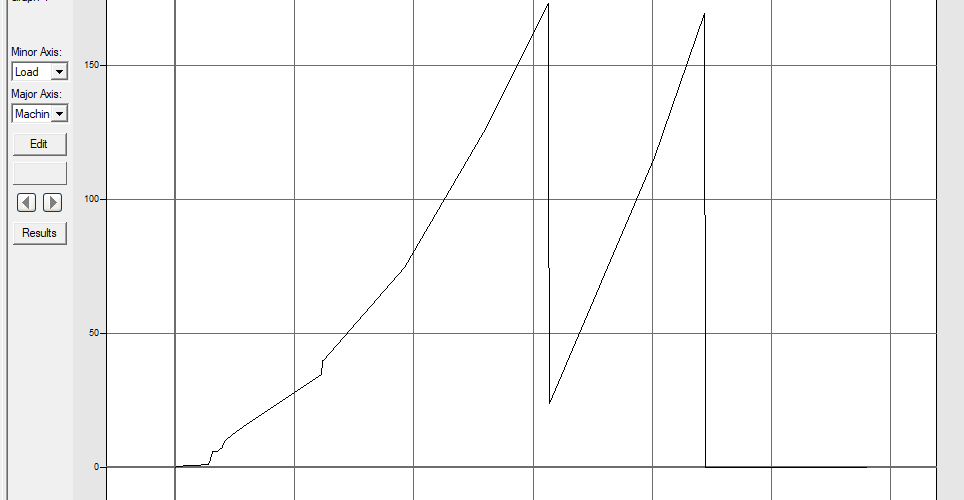

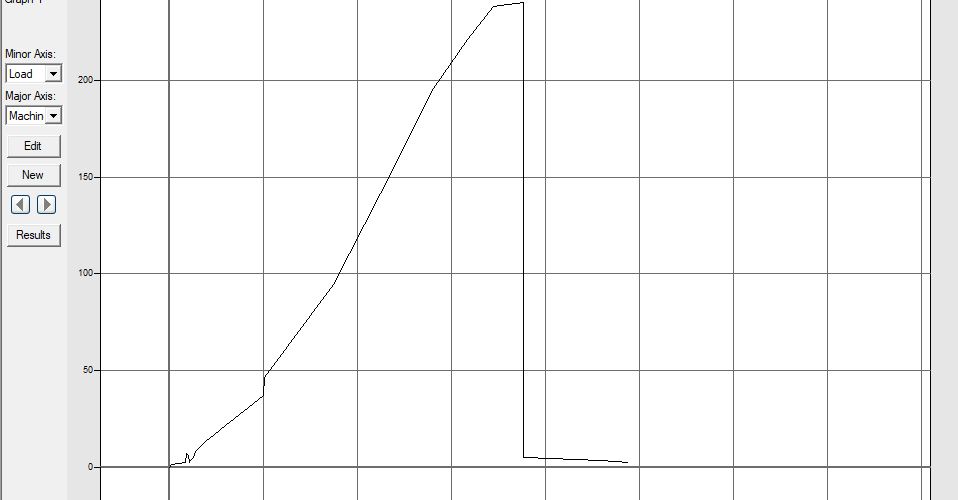

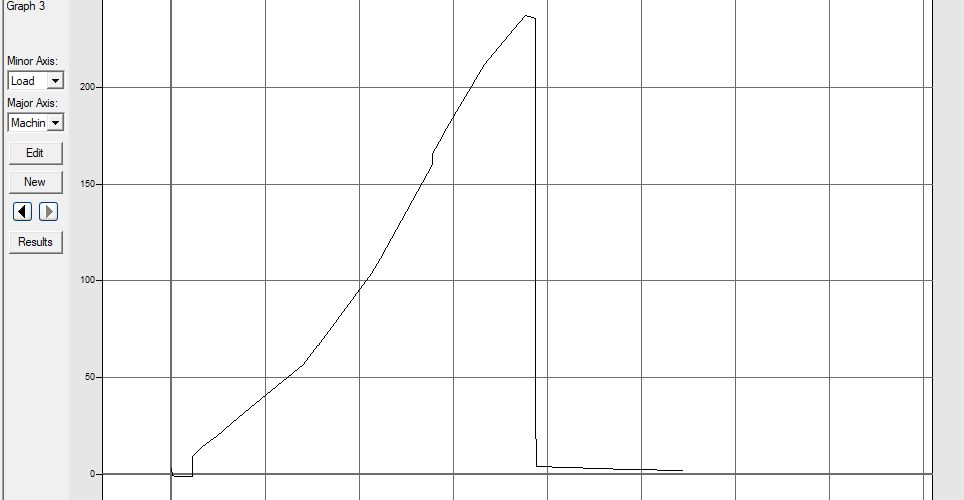

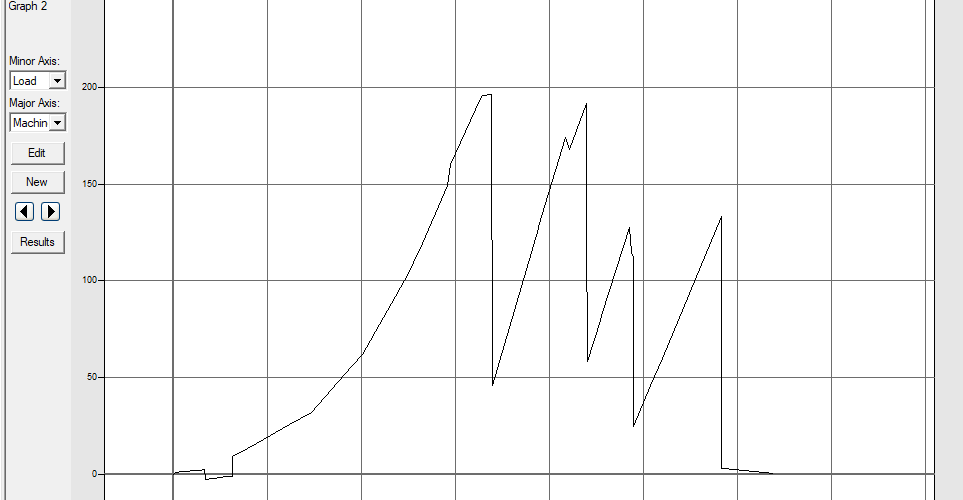

Also, here are the graphs of each of the strings - you can see when the string slips slightly when the graph dips multiple times:
So, did you expect badminton string to be able to handle this much tension? If you enjoyed this kind of badminton science experiment, let me know in the comments what experiment I should do next!
